SSS

1000V PV T Branch Connector Pair

In stock
SKU: MCCCT2V2
(0)
Regular price $7.49
Regular price Sale $9.99 Sale price $7.49
Output

Product Description:

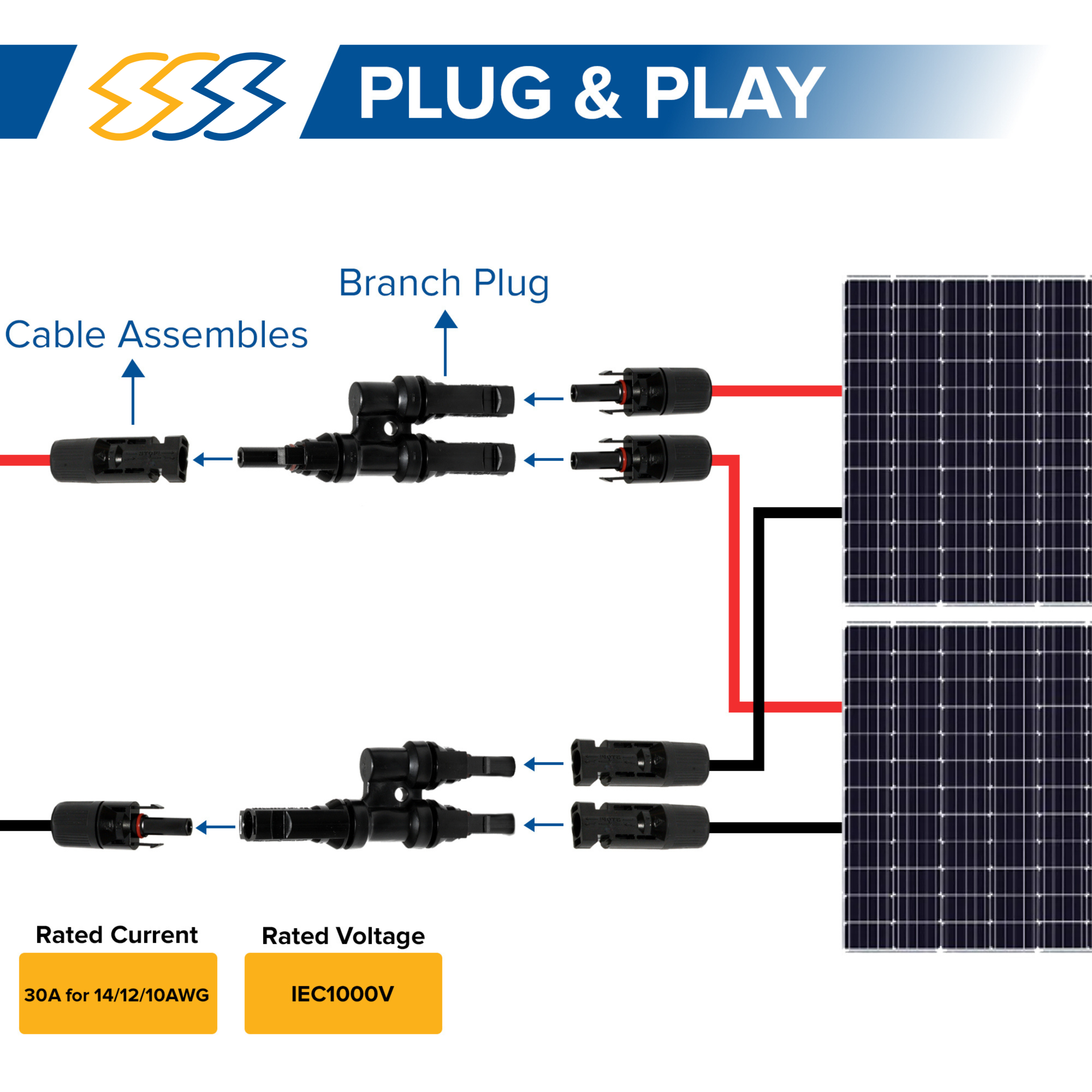

Enhance your solar installation with versatile and safe connecting gadgets. These T branch connectors are the perfect solution for splitting a single photovoltaic cable into multiple outputs for secure terminal connections. With a focus on safety and efficiency, these connectors feature tinned copper conductors that maximize electrical efficiency and ensure a reliable connection. But that's not all, these connectors also have a high voltage rating of 1000V, making them suitable for a wide range of applications.

Features

  • Available in 1-to2, 1-to-3, and 1-to-4 configurations

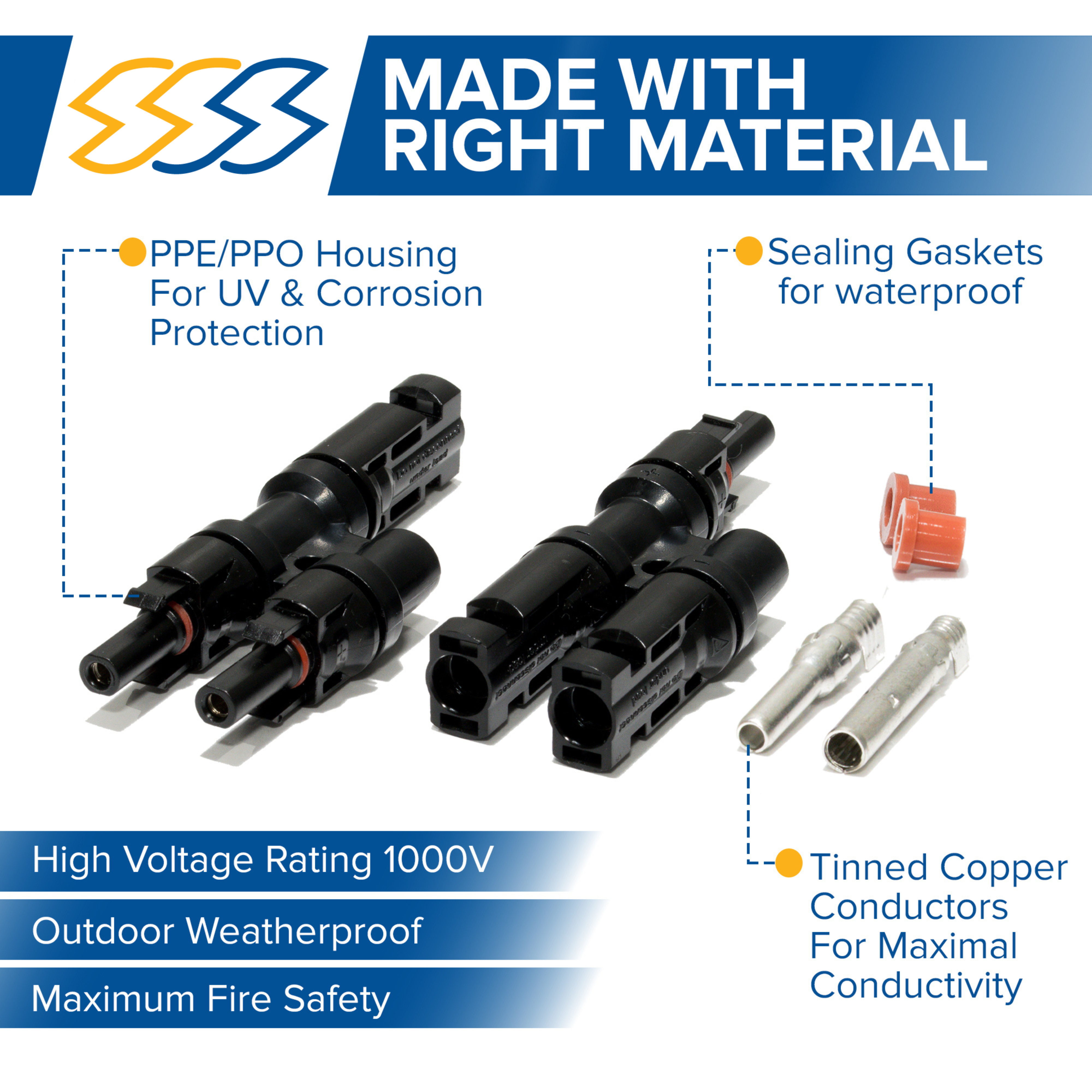

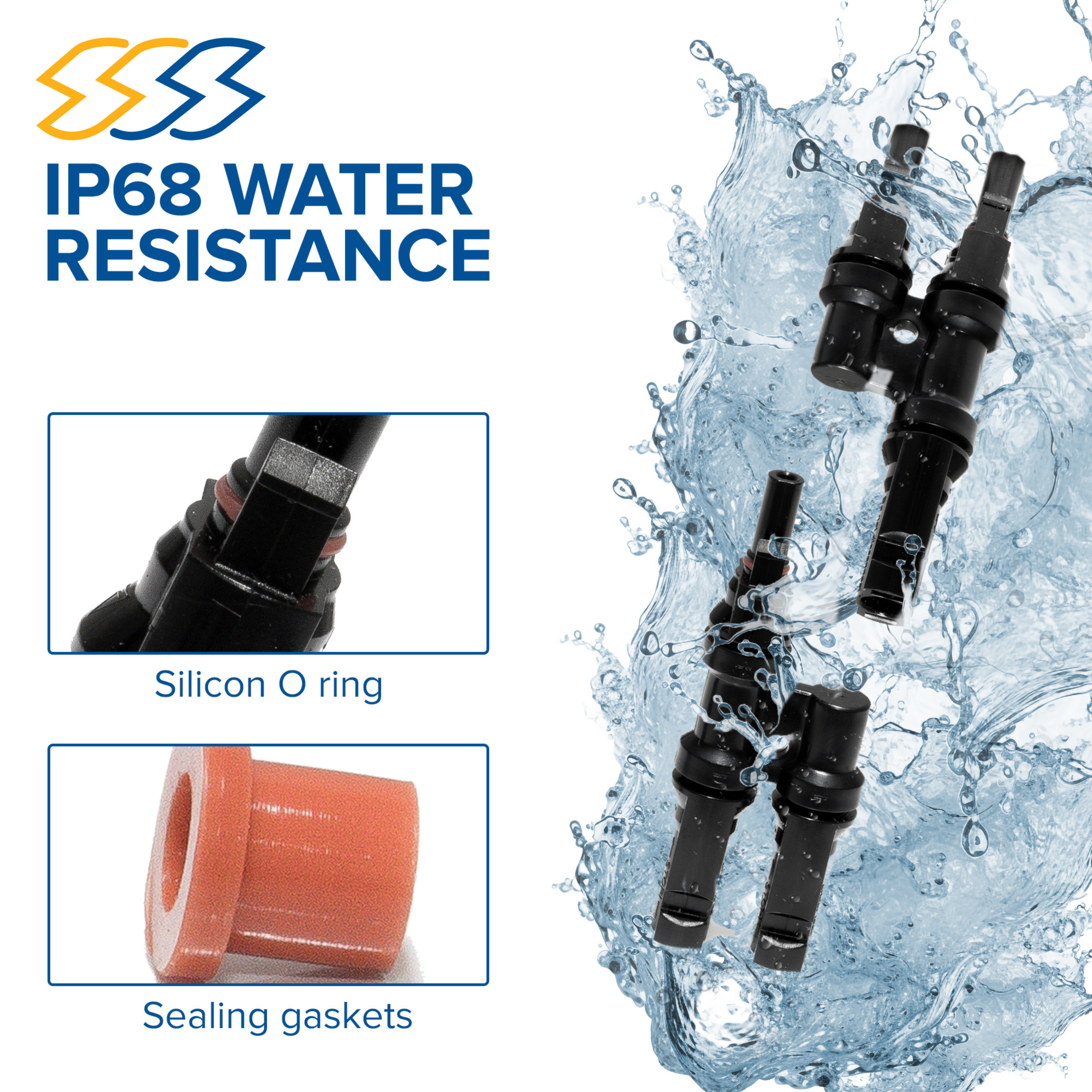

  • Waterproof with IP68 water resistance from silicone O ring and sealing gaskets

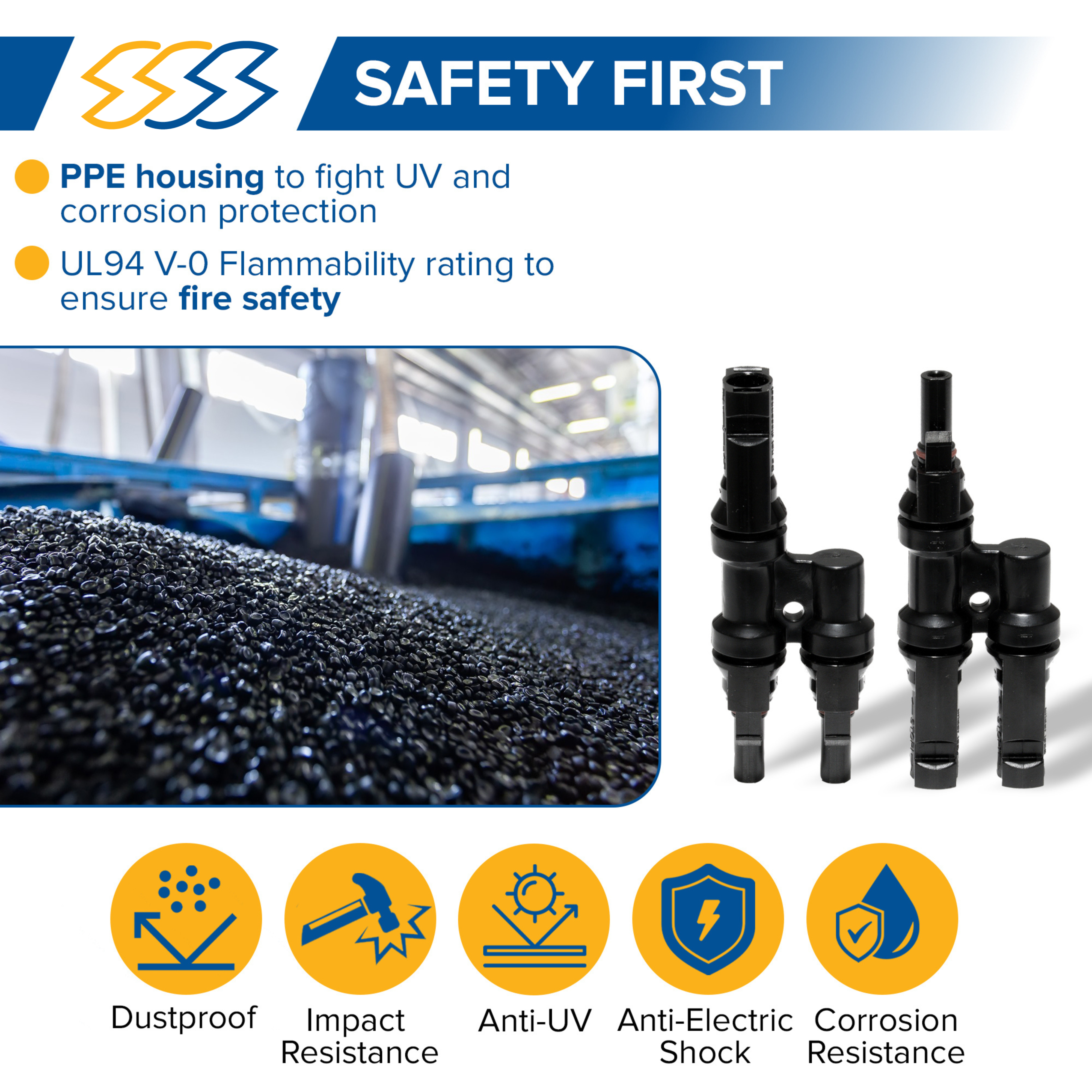

  • PPE housing to fight UV and corrosion protection

  • Assembled and inspected in the US with globally sourced components

When it comes to outdoor resilience, these connectors are a top choice. They are waterproof to withstand tough outdoor conditions, but they also have a wide operating temperature range of -40 to 185 degrees Fahrenheit (-40 to 85 degrees Celsius). This makes them suitable for use in various environments.

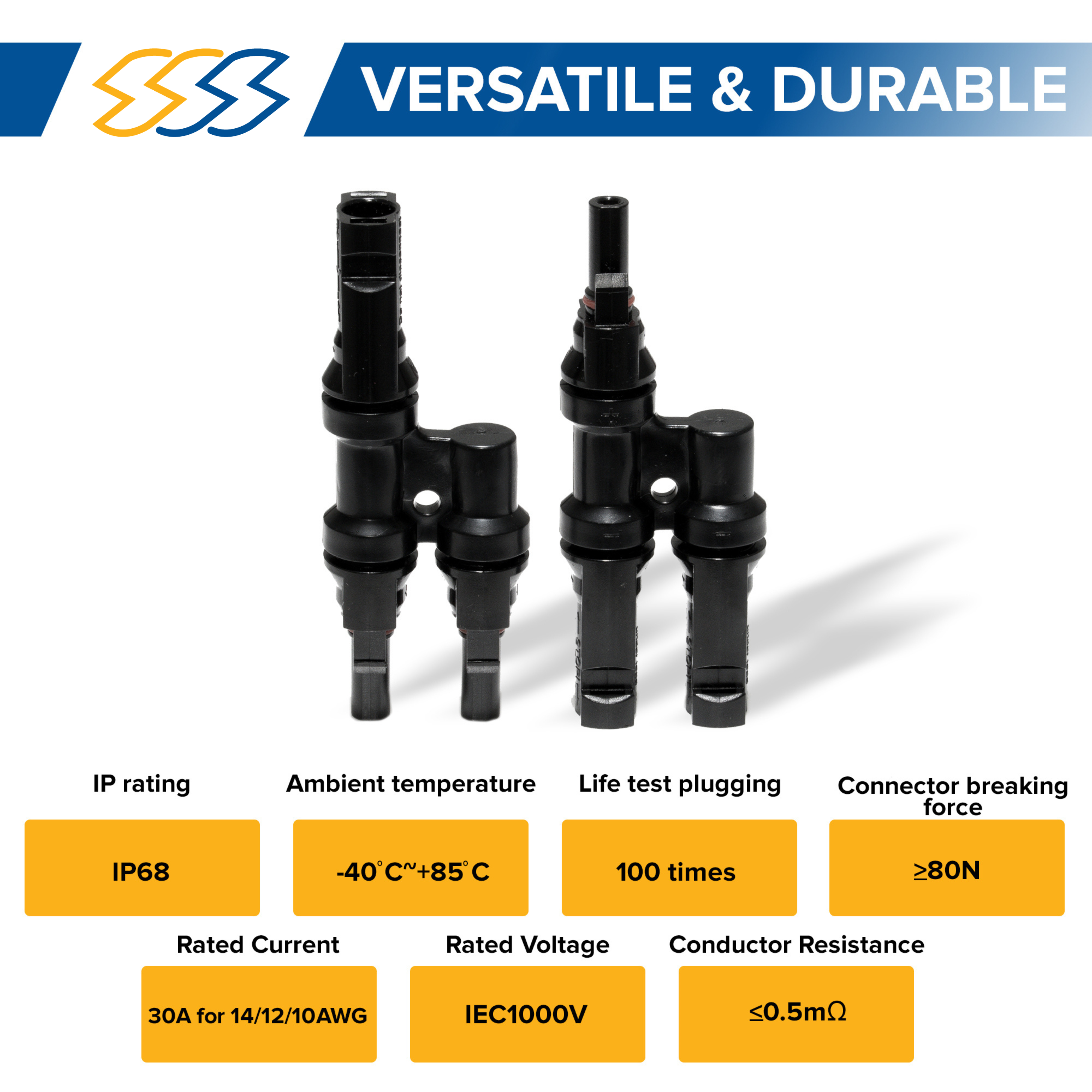

Specs

  • Brand: SSS

  • TUV Certified

  • Rated voltage: IEC1000V

  • Rated current: 30A for 14/12/10AWG

  • Conductor resistance: ≤0.5mΩ

  • Ambient temperature: -40℃∽+85℃

  • Connector breaking force: ≥80N

  • UL94 V-0 Flammability rating

  • Life test plugging: 100 times
