Home Connector MC4 Compatible 1500V PV Connector UL & TUV for 10-14 AWG Wires

Front View of the Female Connector, Male Connector, and Metal Crimp Contacts

1500V PV Connector UL & TUV for 10-14 AWG Wires SSS

UL & TUV 1500V PV Extension Cable 10AWG SSS

1500V PV Connector UL & TUV for 10-14 AWG Wires

In stock

SKU: MCCC16

Product Description:

Upgrade your solar power system into a safe and efficient powerhouse with our UL & TUV 1500V PV Connector for 10-14AWG wires. The Solar Super Sonic PV connectors are built to the highest safety and quality standards, providing you with peace of mind and top performance. This product meets both TUV and UL. Used by Tier 1 solar module manufacturers on the back of their solar panels.

Features:

Commercial/Utility grade heavy duty OV connector
1500V high voltage rating and IP68 waterproof rating for any installations in any weather
PPE housing provides UV and corrosion protection
Shielded clasps preventing breakage or unintentional disconnection
Reverse teethed caps prevent falling off
Tier 1 module OEM components
Assembled, inspected, and kitted in Atlanta, USA

You can easily customize your solar panel setup to meet your specific needs while meeting the top safety and quality standards to ensure reliable and efficient performance.

Specifications:

Brand: Solar Super Sonic
UL + TUV Dual Certified
100% tinned copper conductors, resistance ≤0.3mΩ
1500V high voltage rating
IP68(1m,1h) waterproof rating
UL94 V-0 Flammability rating to ensure fire safety
Operates in temperatures ranging from -40 to 185 degrees Fahrenheit

Certifications:

UL 6703

TUV IEC 62852:2014

TUV IEC 62852:2014/AMD1:2020

TUV EN 62852:2015/A1:2020

RoHS Compliant

(8)

$29.99

Enroll Our Installer Program for 25%-50% Discount

Quantity 6 Pairs 18 Pairs 100 Pairs

Product variants

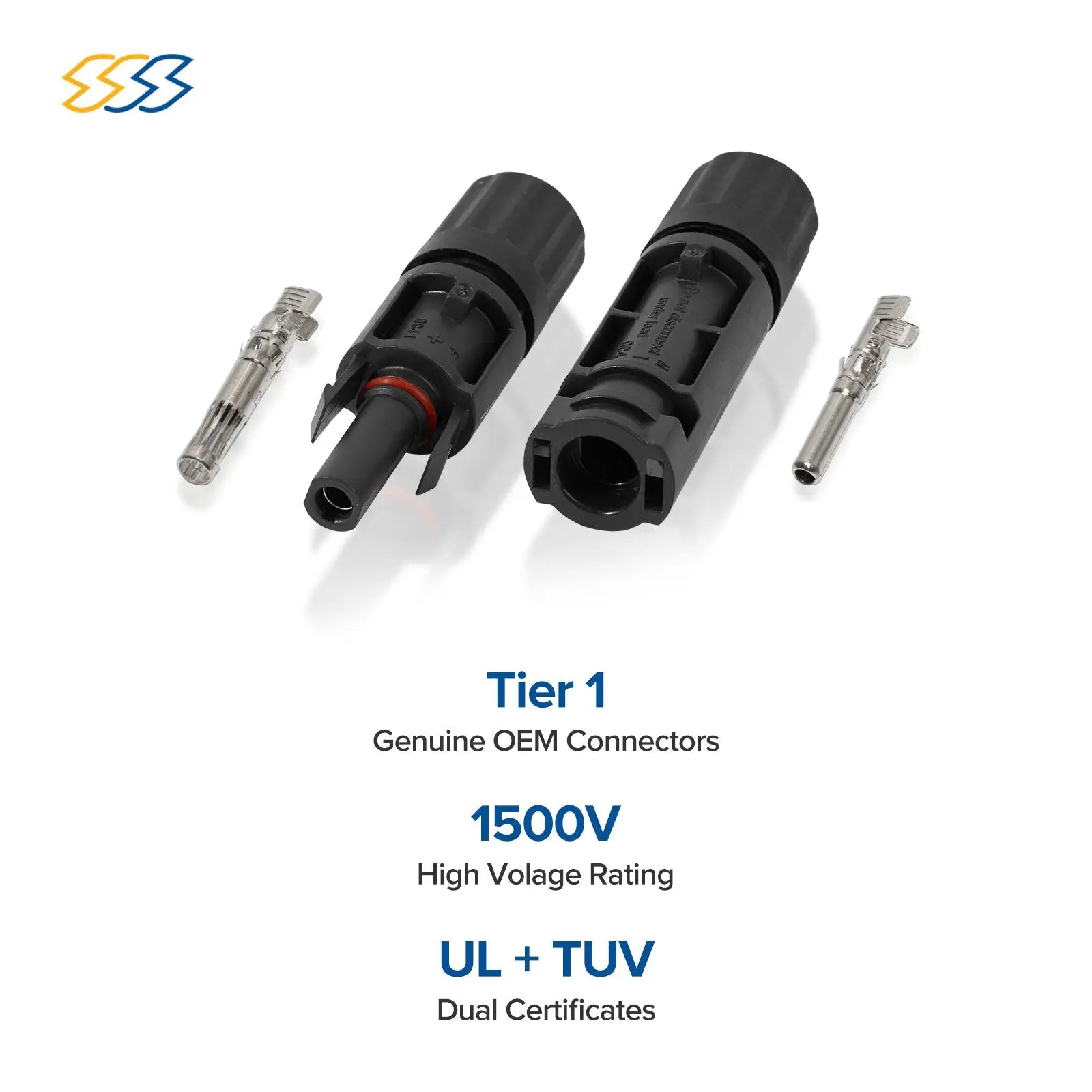

Tier 1 Genuine OEM Connectors

• 1500V High Voltage Rating • UL + TUV Dual Certificates

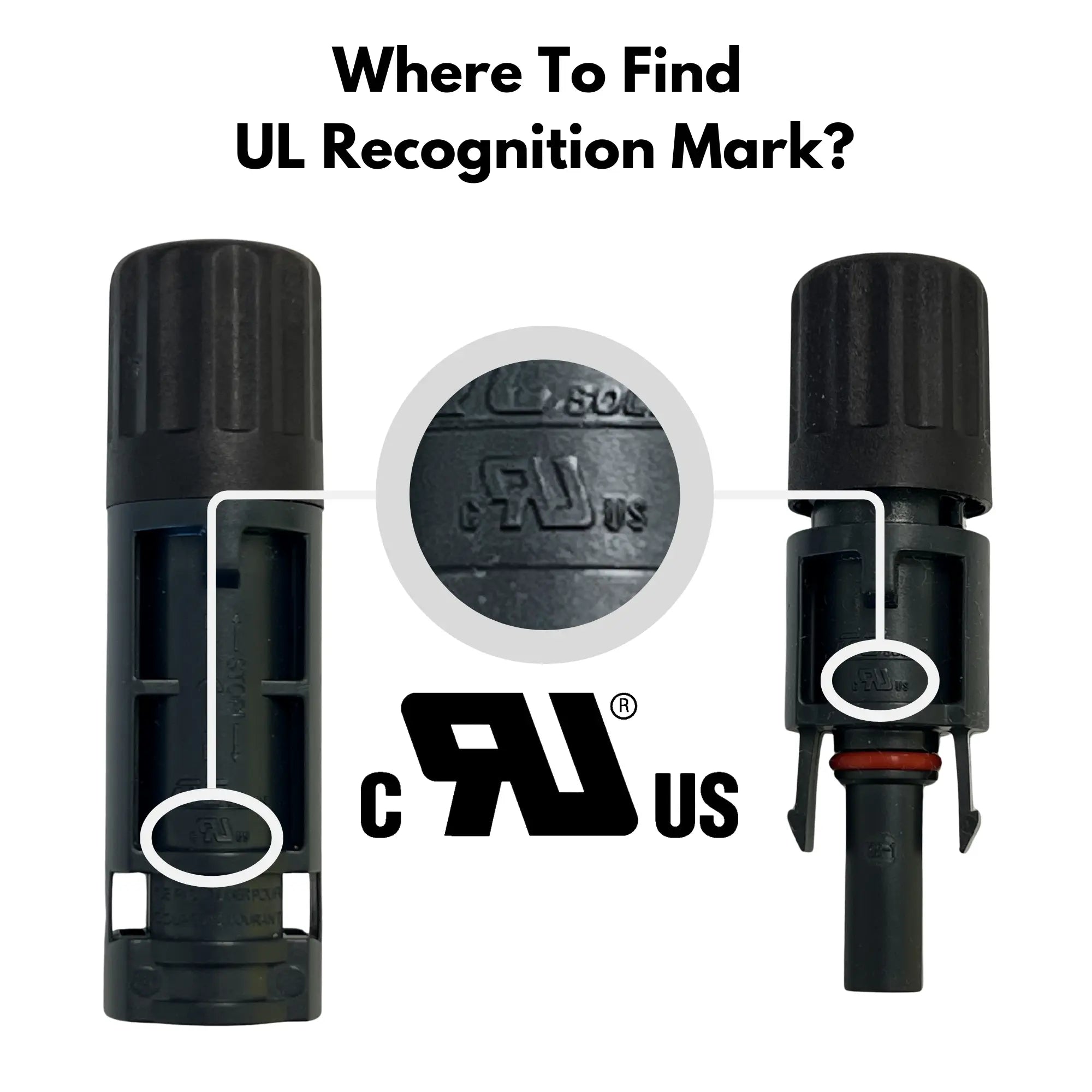

Where to Find UL Recognition Mark?

The UL mark is located on the connector housing.

IP68 Water Resistance

Waterproof Guaranteed with Silicone O-Ring and Sealing Gaskets

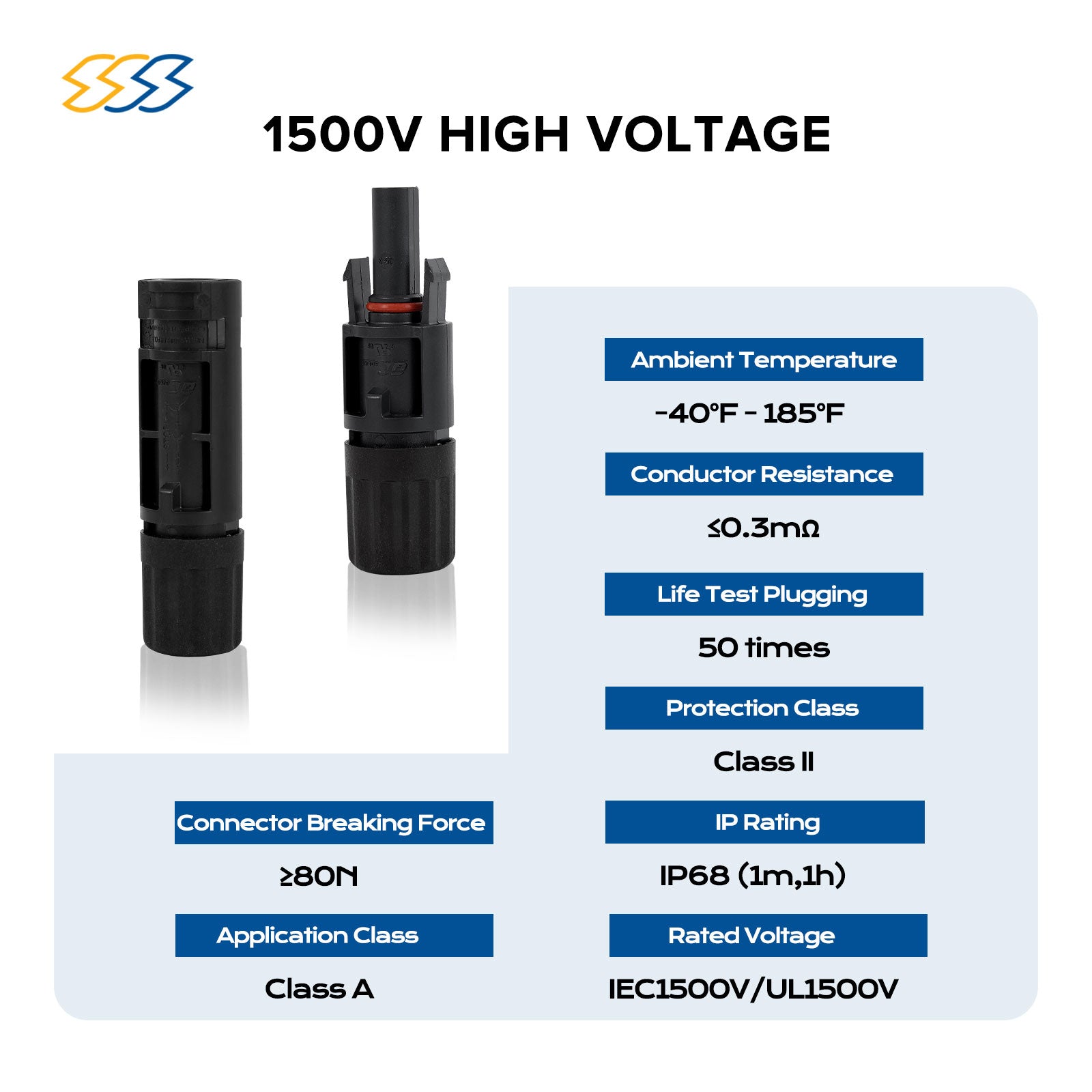

1500V High Voltage

• Ambient Temperature: -40°F - 185°F • Conductor Resistance: ≤0.3mΩ • Life Test Plugging: 50 times • Protection Class: Class II • Connector Breaking Force: ≥80N • IP Rating: IP68 (1m, 1h) • Application Class: Class A • Rated Voltage: IEC1500V/UL1500V
